SMALL FORM FACTOR, 288 CHANNEL,

PROGRAMMABLE, WIDE ARRAY

HYPERSPECTRAL PUSHBROOM VNIR IMAGER

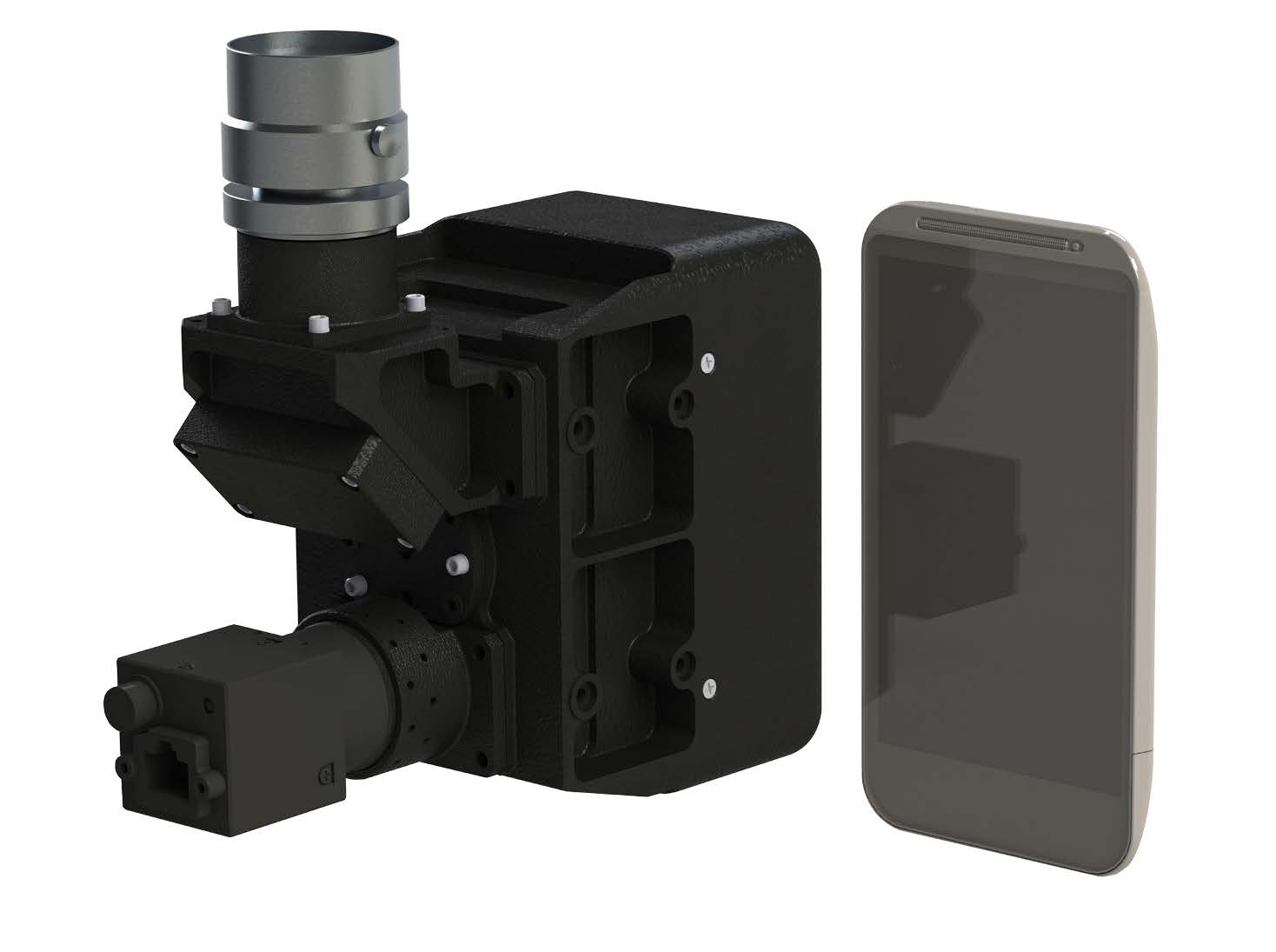

Portable Air/Ground Hyperspectral VNIR Imager

0.4–1.0μm Spectral Coverage

Self-Contained Camera & Data Recording

288 Spectral Channels

36.6° FOV

1920 Spatial Imaging Pixels

Custom Fore-Optics Available

Optional GPS/IMU

Internal Calibration System

Easy Lidar Integration

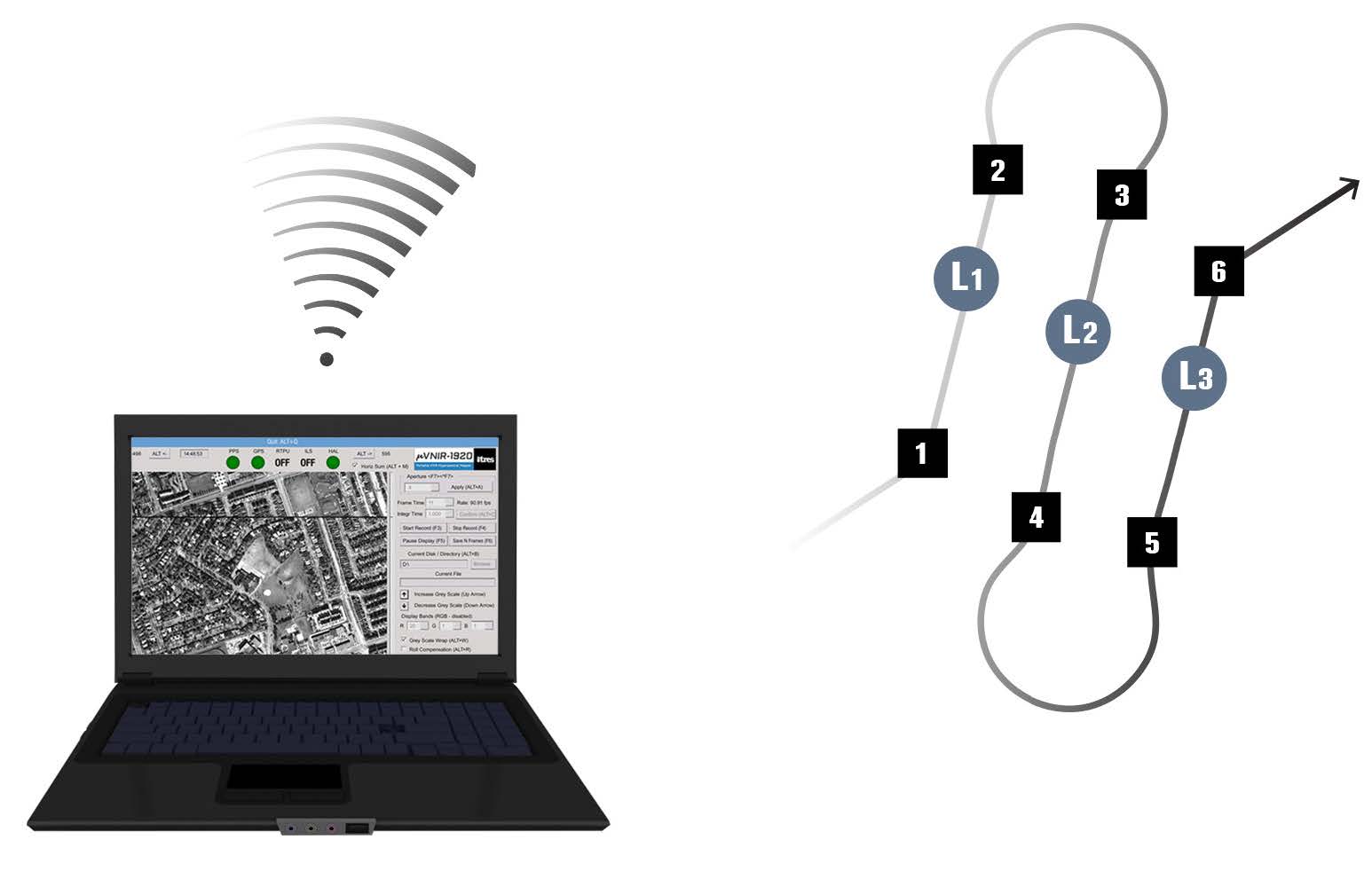

Remote Operation via R/F Link or

Autonomous via Waypoints

Precision Data Time Stamping to External Devices API Available

PERFORMANCE：

Spectral Range: 400-1000nm

(Continuous Coverage)

# Spectral Channels: 288

# Across‐Track Pixels: 1920

Total Field of View: 36.6 degrees

IFOV: 0.36 mRad (0.021°)

f/#:f/2.0

Spectral Width: 2.1nm (average)

Sampling/Row

Spectral Resolution (FWHM) : <5nm

Pixel Size: 5.86 x 5.86 microns

Dynamic Range: 12-bits

Detector Full Well: 32,500 electrons

Maximum FPS: 280 fps (full frame)

Spectral Smile/: ≤0.5 pixels

Keystone Distortion: ≤0.5 pixels

Data Recording Capacity: 480GB (SSD, SATA III)

Data Recording Capacity (hr): 3 hours (@ 40fps)
